MAN TGS 41.440 Koks 20m³ Combi
General
| Dimensions (cm) | 1090 x 255 x 395 |
| Overall condition | Good |
| Technical condition | Good |
| Optical condition | Good |
Chassis
| Own weight (kg) | 24870 |
| Loading capacity (kg) | 16130 |
| GVW (kg) | 41000 |
| Wheelbase (cm) | 530 |
Powertrain
| Transmission | Manual |
| Cylinder capacity (cc) | 10518 |
| Engine power (pk) | 441 |
| Engine power (kw) | 324 |
Axle configuration (8x4)
| Axle |
|---|
| Tire size |
| Profile left/right (%) |
| Suspension |
| Maximum axle load (kg) |
| Reduction |
| Axle lift |
| Steering |
| Powered |
| #1 |
|---|
| 385/65 22.5 |
| 50 / 50 |
| Leaf |
| 9000 |
| - |
| #2 |
|---|
| 385/65 22.5 |
| 40 / 40 |
| Leaf |
| 9000 |
| - |
| #3 |
|---|
| 315/80 22.5 |
| 50 : 50 / 50 : 50 |
| Hydraulic |
| 11500 |
| Hub |
| #4 |
|---|
| 315/80 22.5 |
| 50 : 50 / 50 : 50 |
| Hydraulic |
| 11500 |
| Hub |
Drag from right to left
Questions?
Sales
All prices are excluding VAT.
All specifications are subject to change. The given mileage, sizes, weights and other specifications are not legally binding.
Accessoires
Comments
- Koks 20m³ (type: Combi 20.0/150 ARP/BB) Combi- Rear tipping system construction
- Stainless steel sludge tank capacity: 10m³
- Stainless steel rinse water tank capacity: 10m³
- Large high pressure hose reel at the rear
- Large roll-off suction hose at the top

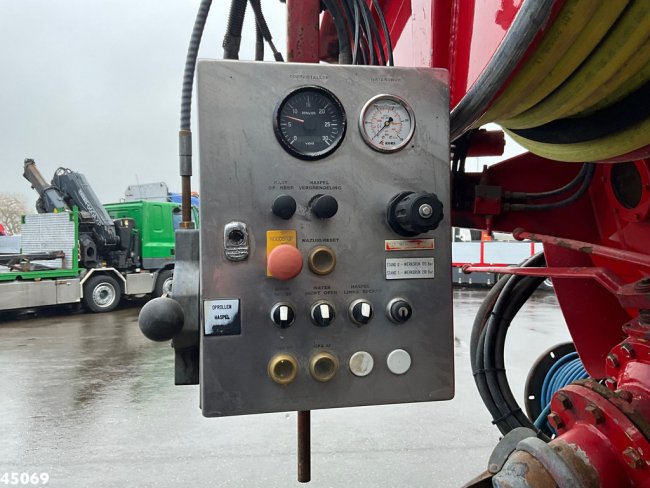

- Radio remote control
- Siemens vacuum pump (type: 2BE1 252) 2600m³ per hour
- Woma high pressure pump (type: 150 ARP P55), 402 liters per minute at 320 bar
- High pressure reel
- Hour counter general: 11,601
- Hour counter high-pressure pump: 3,793
- Retractable rear bumper
- Multiple storage boxes

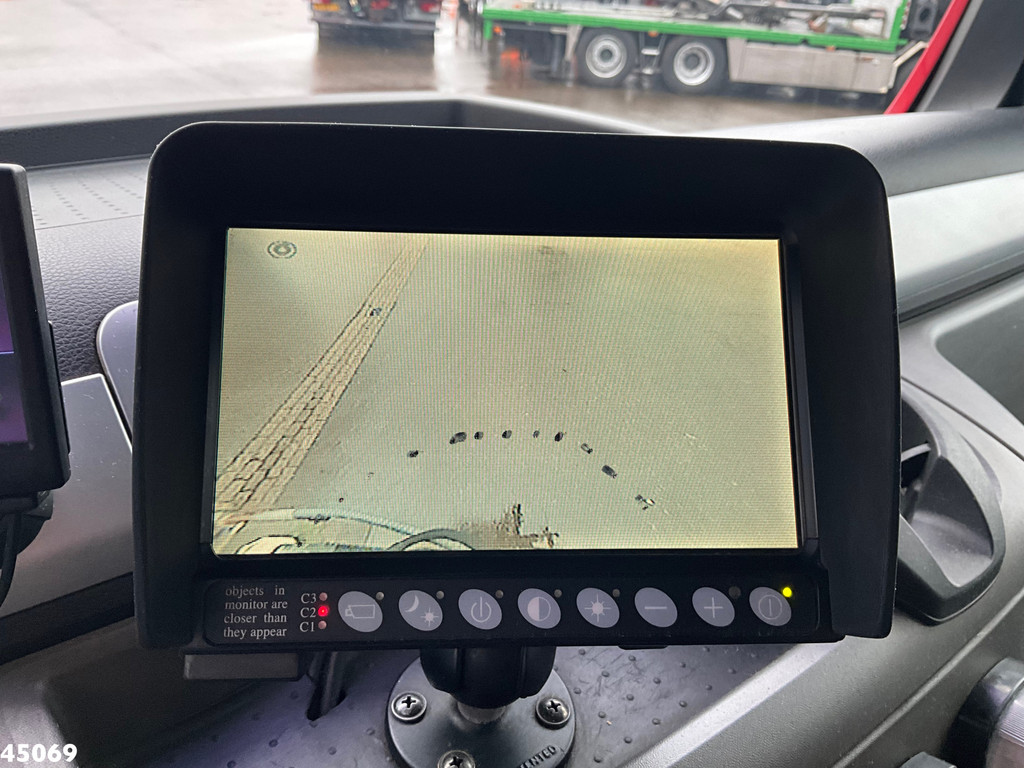

- Front camera
- 9 Ton front axles!
- Engine: D2066LF36
- Transmission: ZF 16 S 252 OD
- 400 Liter fuel tank
- MAN Brake Matic (electronic brake system)
- In good condition!
